Marketing Name

ASUS TUF Gaming A16

Operating System

No preinstalled OS

Color

Jaeger Gray

Dimension (W x D x H)

35.4 x 26.9 x 1.79 ~ 2.57 cm (13.94" x 10.59" x 0.70" ~ 1.01")

Weight

2.20 Kg (4.85 lbs)

Processor

AMD Ryzen™ 7 260 Processor 3.8GHz (24MB Cache, up to 5.1 GHz, 8 cores, 16 Threads); AMD XDNA™ NPU up to 16TOPS

Chipset

N/A

Intergrated GPU

AMD Radeon™ Graphics

Discrete/Optimus

MUX Switch + NVIDIA® Advanced Optimus

Graphic

NVIDIA® GeForce RTX™ 5060 Laptop GPU

Graphic Wattage

2547 MHz* at 115W (2497 MHz Boost Clock+50MHz OC, 100W + 15W Dynamic Boost)

Graphic Memory

8GB GDDR7

Neural Processor

AMD XDNA™ NPU up to 16TOPS

Panel Size

16-inch

Resolution

FHD+ 16:10 (1920 x 1200, WUXGA)

Refresh Rate

165Hz

Response Time (G2G)

3ms

Viewing Angle

85/85/85/85

Panel Tech

IPS-level

Brightness

300 nits

Contrast Ratio

1000:1

NTSC %

72.00%

SRGB %

100%

Adobe %

75.35%

Glare

Anti-glare display

Adaptive-Sync technology

G-Sync

Pantone

N/A

Support Dolby Vision HDR

N/A

On board memory

N/A

DIMM Memory

16GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC *2

Total System Memory

DDR5 32GB

Memory Slot

2x SO-DIMM slots

Memory Max.

64GB

How to upgrade memory

Upgradable

Storage

1TB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

M.2 PCIe 512mb

M.2 PCIe 1TB

M.2 PCIe 2TB

Expansion Slot (includes used)

2x DDR5 SO-DIMM slots
2x M.2 PCIe

LAN

10/100/1000 Mbps

Wireless

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

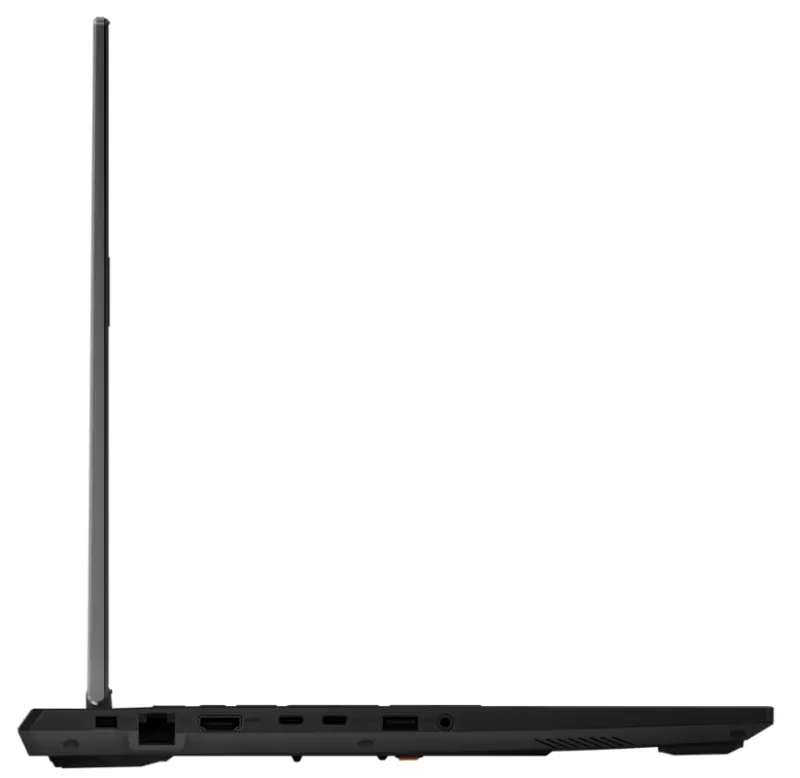

I/O Ports

1x RJ45 LAN port
1x Type-C USB 4 with support for DisplayPort™ (data speed up to 40Gbps)
1x USB 2.0 Type-A (data speed up to 480Mbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 10Gbps)
2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

Display output

1x HDMI 2.1 FRL

Camera

1080P FHD IR Camera for Windows Hello

Mic

Built-in array microphone

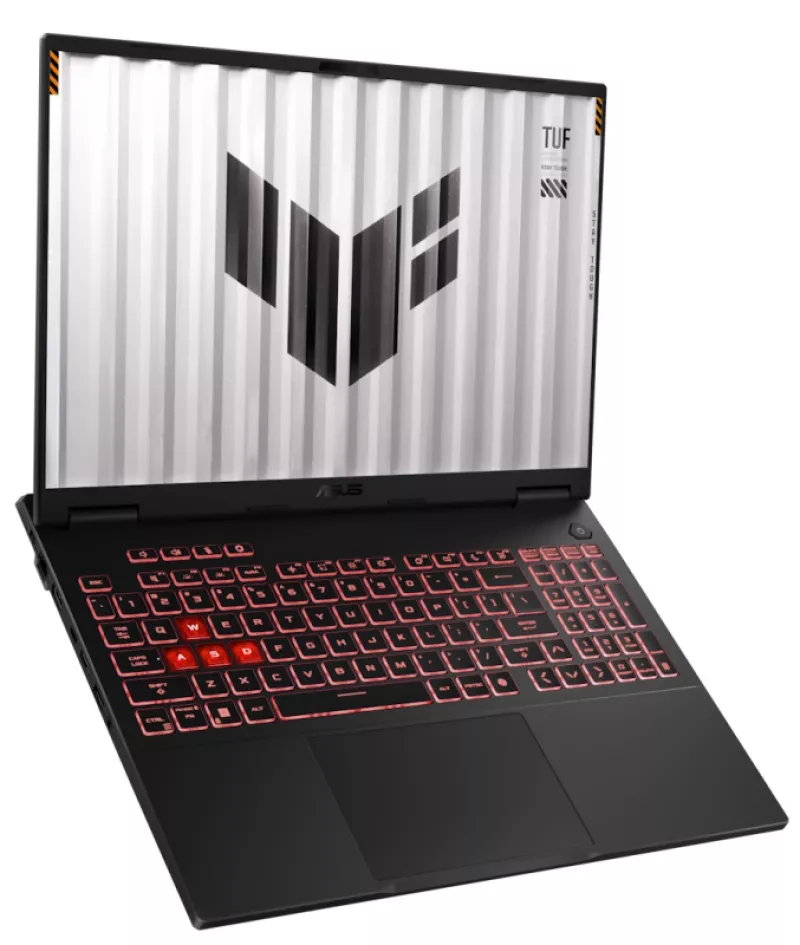

Keyboard Type

Backlit Chiclet Keyboard 1-Zone RGB
With Copilot key

*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq

Aura Sync

Yes

Touchpad

Touchpad
N/A

Speakers

2-speaker system

Audio

1x 3.5mm Combo Audio Jack
Built-in array microphone

Audio Tech

AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.)

Security

BIOS Administrator Password and User Password Protection
Pluton Security Processor
Secured-core PC (Level 3)

Battery

90WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

Rectangle Conn, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal

Required charging power

Min: 45W
Max: 100W
*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.

Ecolabels & Compliances

ENERGY STAR®
EPEAT Silver
