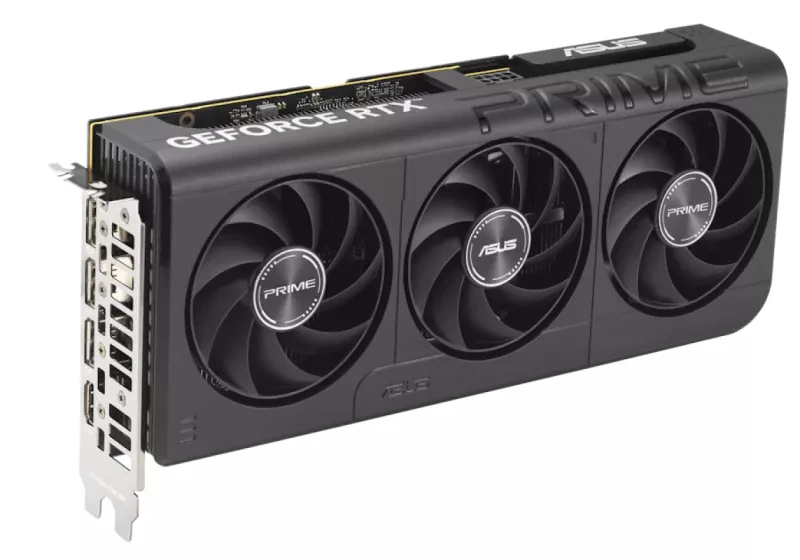

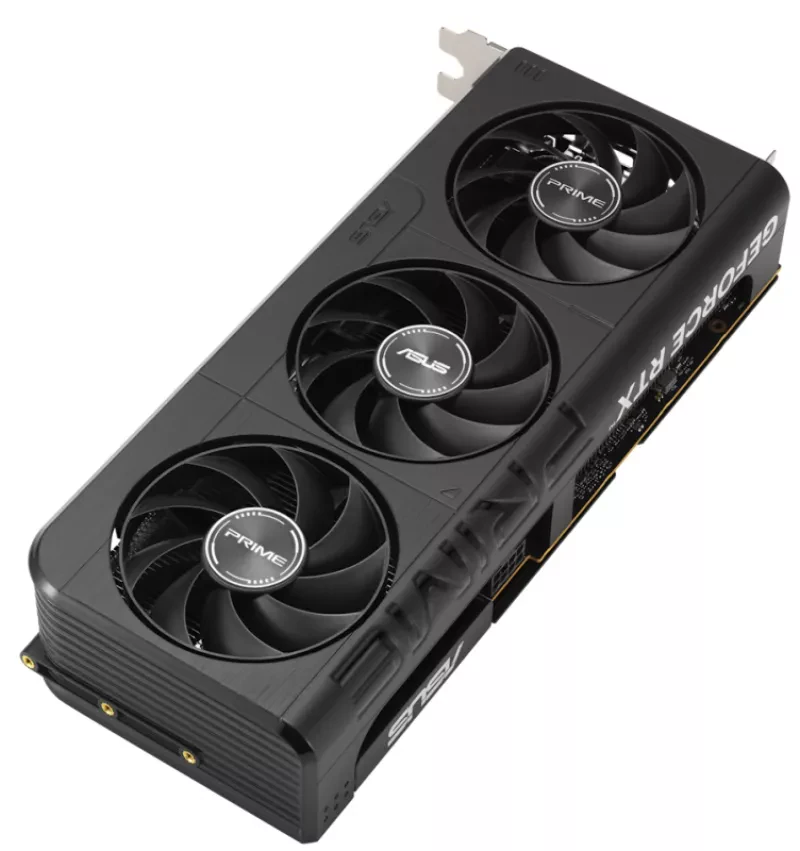

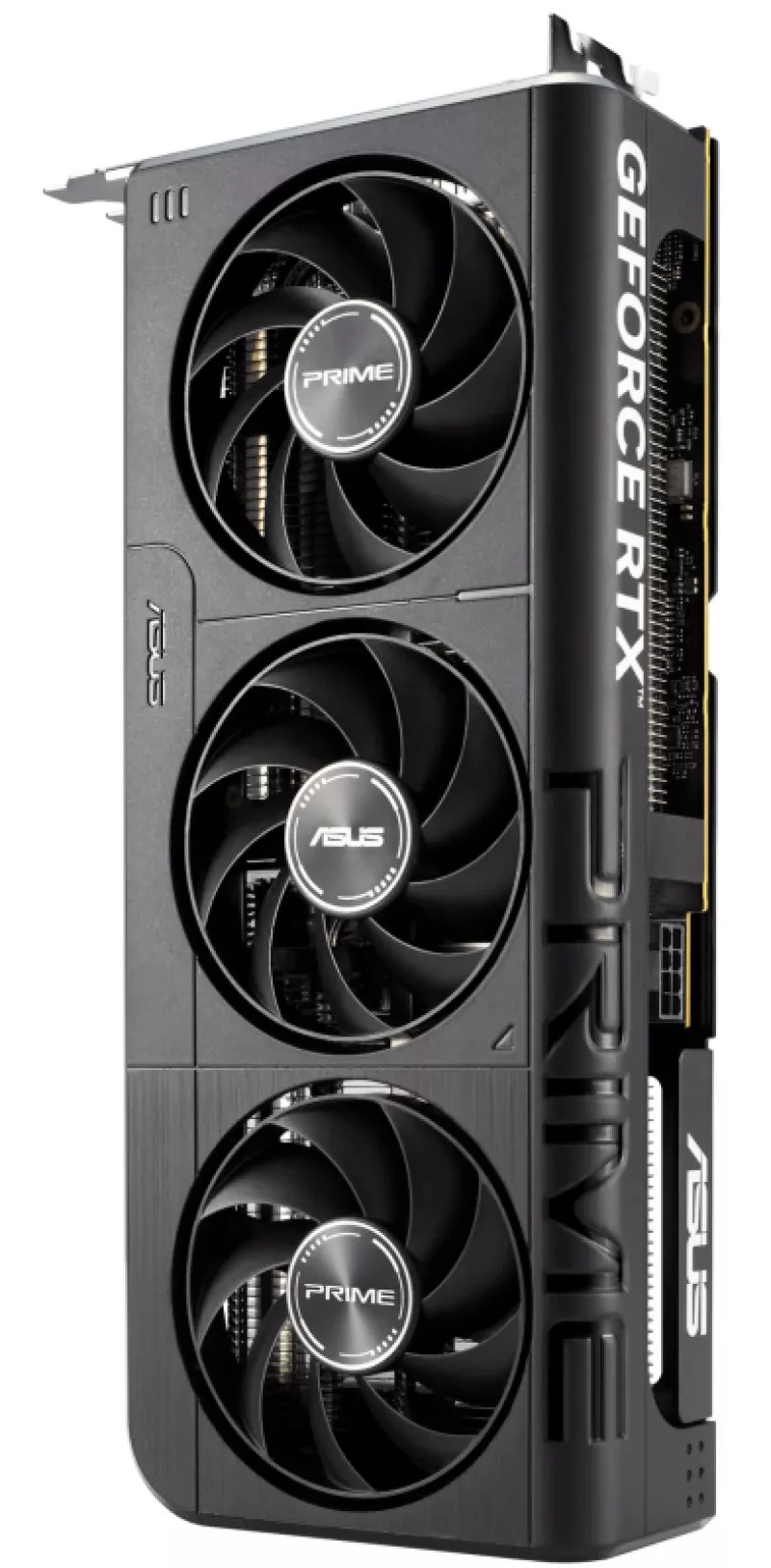

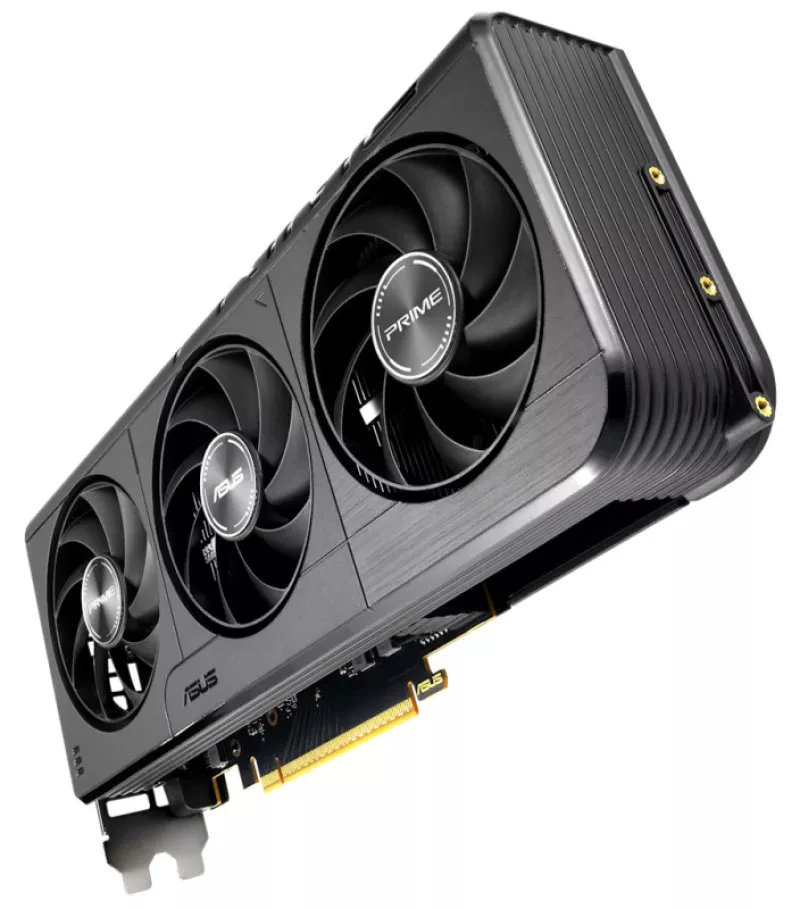

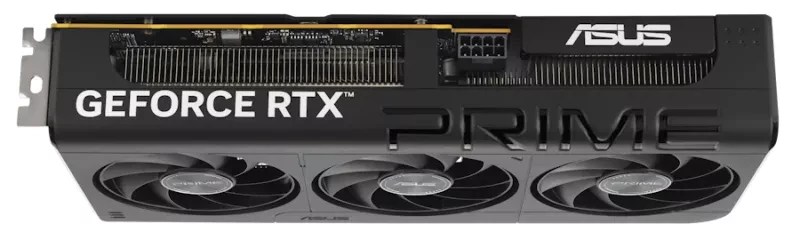

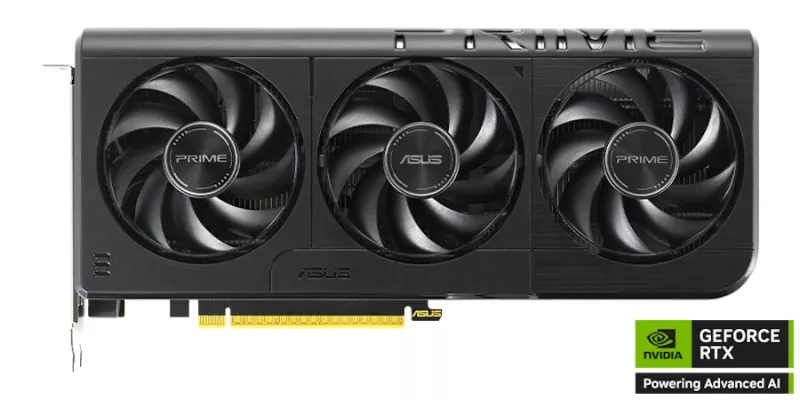

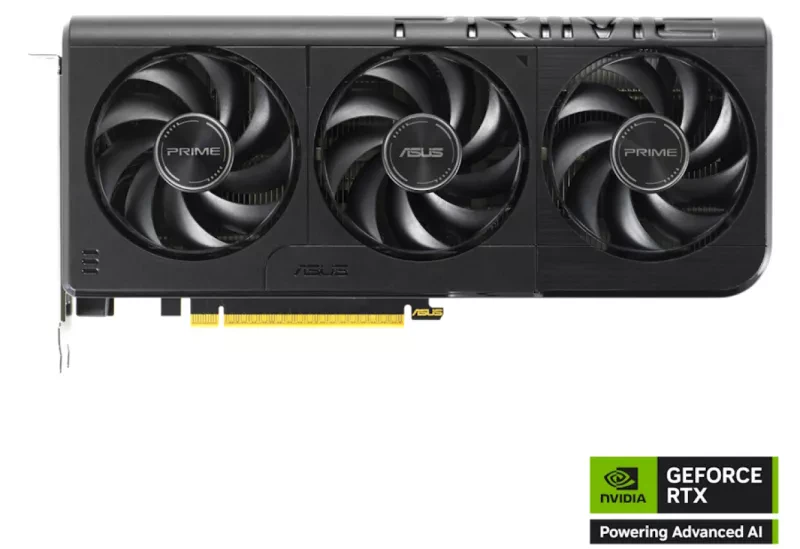

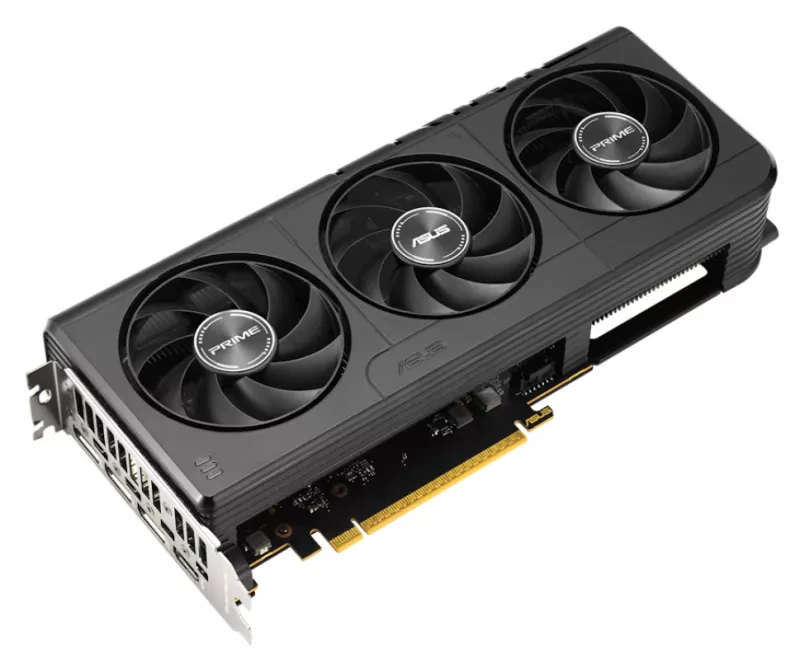

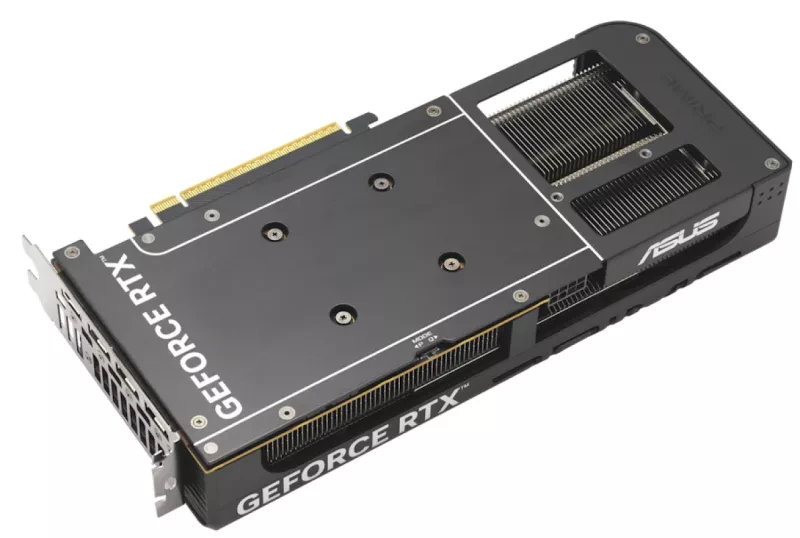

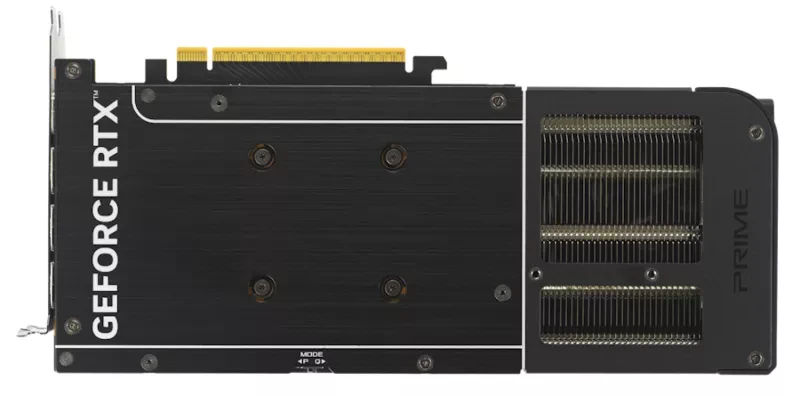

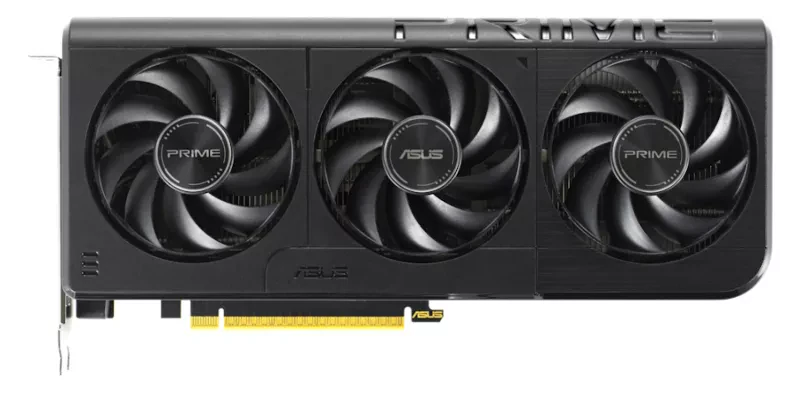

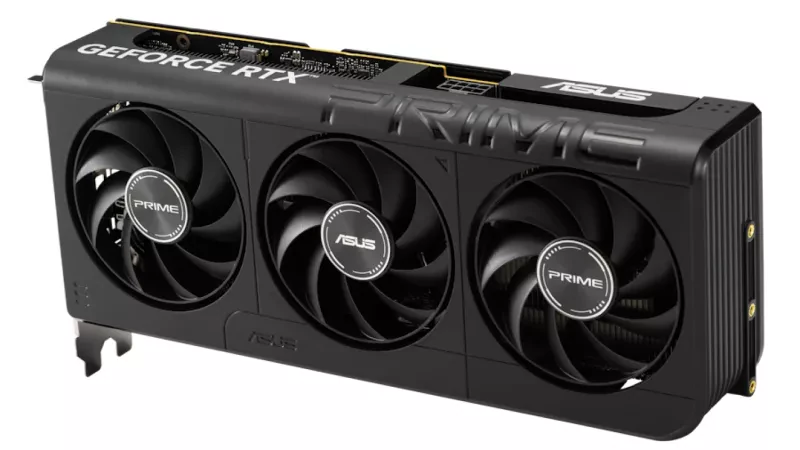

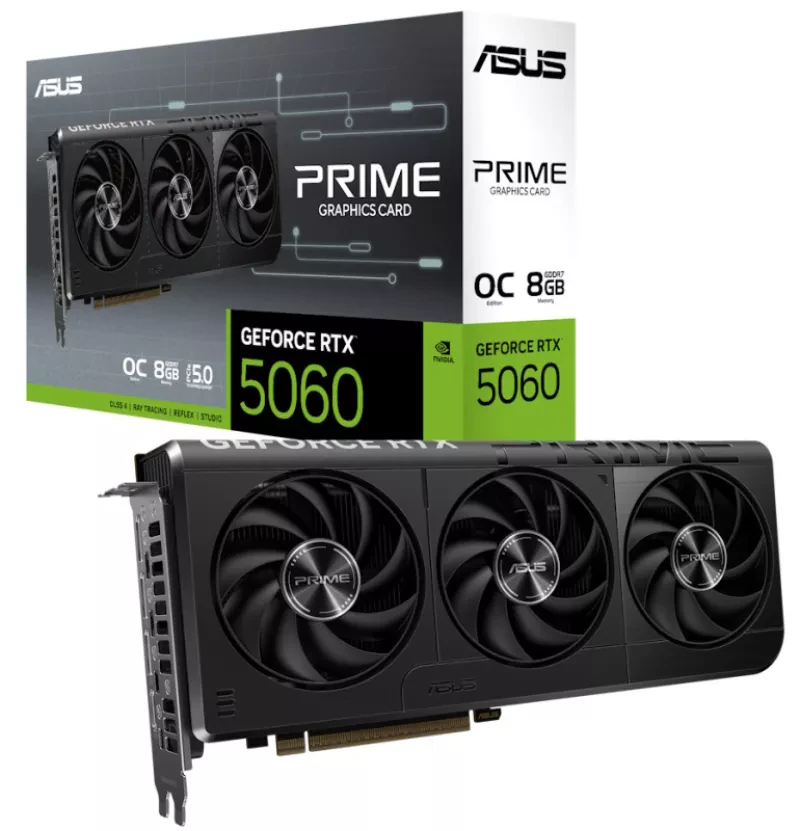

Model Name

PRIME-RTX5060-O8G

Graphics Engine

NVIDIA® GeForce RTX™ 5060

CUDA cores

3840

OpenGL®

OpenGL® 4.6

Engine Clock

OC mode: 2595MHz
Default mode: 2565MHz (Boost Clock)

Memory Interface

128-bit

Video Memory

8GB GDDR7

Memory Speed

28 Gbps

AI Performance

630

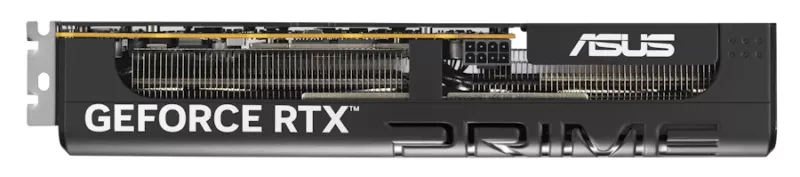

Power Connector

1 x 8-pin

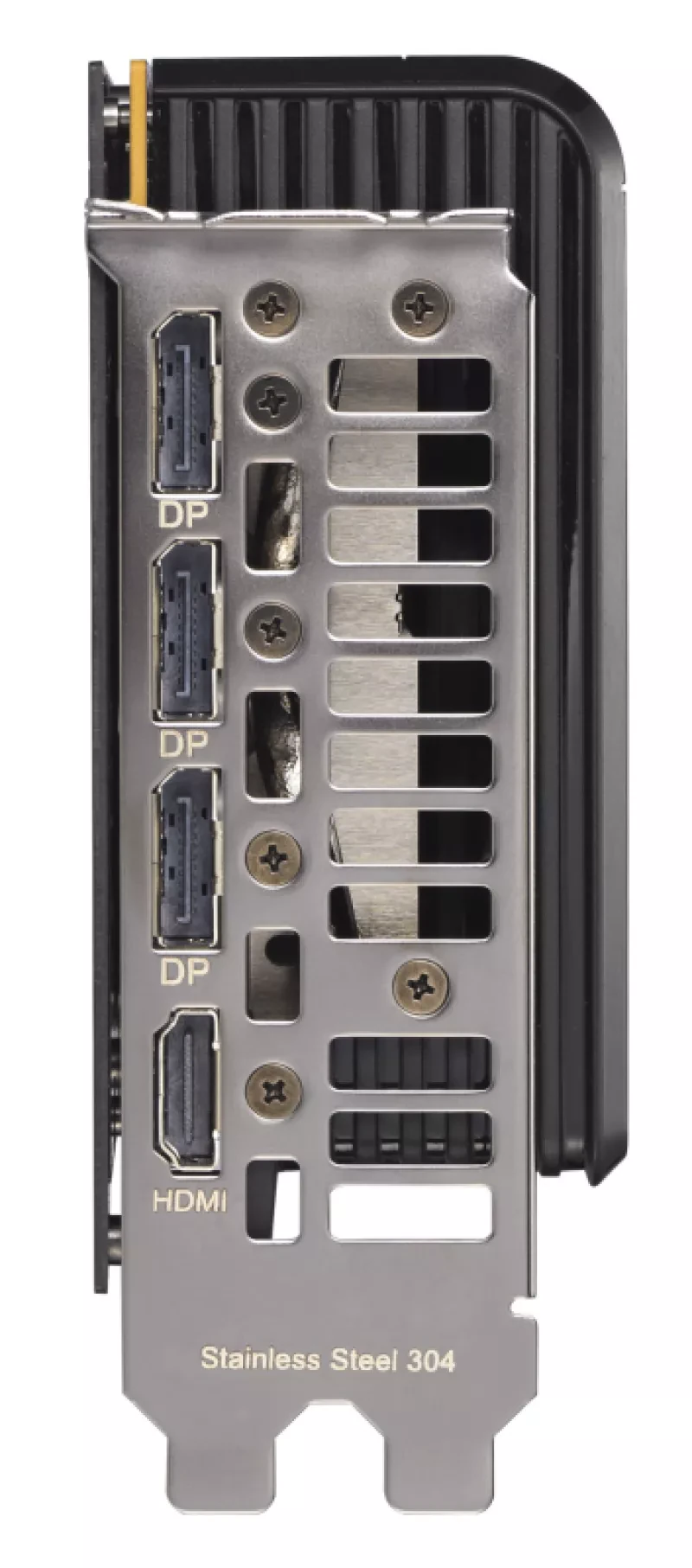

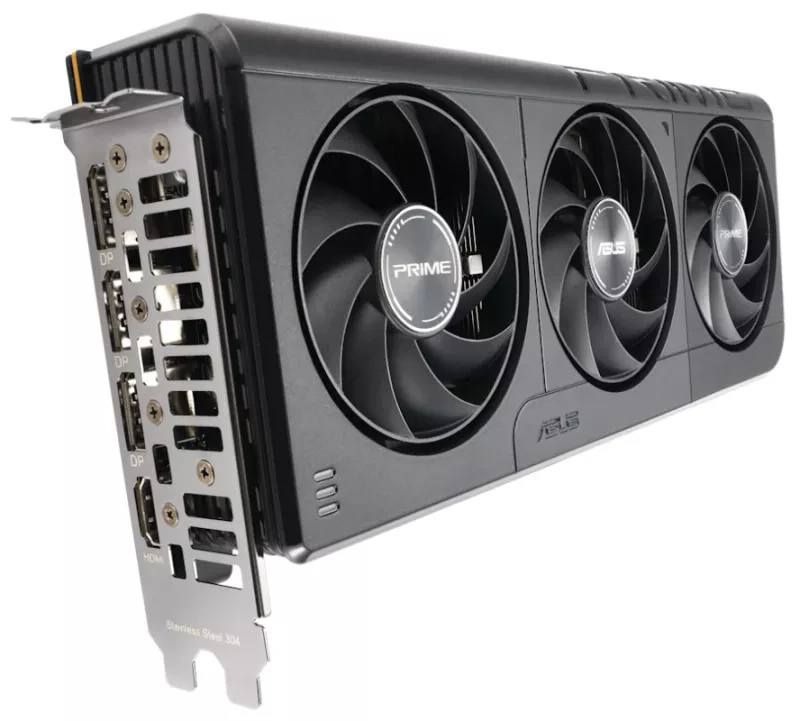

I/O

1 x Native HDMI 2.1b
3 x Native DisplayPort 2.1b

HDCP Compliant

HDCP 2.3

Digital Max. Resolution

7680 x 4320

Maximum Display Support

4

NVLink/ Crossfire Support

N/A

Recommended PSU

550W

Bus Standard

PCIE 5.0

Package Contents

1 x Speedsetup Manual
1 x Thank You Card

Software Bundled

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Slot

2.5 slot

Dimension

Card Size (mm/inch)

268.3 x 120 x 50mm
10.56 x 4.72 x 1.97 inches

Color Box (mm)

405 x 233 x 88.5 mm

Weight

Single Card (KG)

0.775

Product Weight
(with packing) (KG)

1.415

Notes

Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.

Regulation

■S-AT2-001 GreenASUS Hazardous Substances Free(HSF) Technical                            Standard(Global RoHs,China RoHS,EU REACH,J-MOSS)
■WEEE

Certifications

■ FCC ■ CE ■ C-TICK ■ BSMI ■ KCC ■ VCCI
